There are many different ways to solve a Sudoku puzzle with a computer. A previous post explained how to solve Sudoku puzzles with pencil marks and solving techniques (as a human would do), and also using brute force with or without backtracking, something only a computer can do. However, that was all too advanced and created some confusion among readers. In this post, we take a step back and use a very basic solving algorithm, which is probably the simplest way to solve a Sudoku puzzle with a computer. The algorithm applies basic logic to find unique occurrences for each puzzle gap. This will only solve Sudoku puzzles of low and medium difficulty though (maybe some difficult too).
Sudoku Solving Logic
The easiest way to solve a Sudoku puzzle is to
apply simple logic by filling all possible positions where a certain number can
potentially be added, and then checking which numbers are unique within a row,
column, or block for each of those positions. When unique, the number is
solved, and the process repeats again. We will see how this works in more
detail later in this post.
But there are many other logic deduction techniques that can be used to solve Sudoku. Using pencil marks allows applying a broad variety of solving techniques such as finding naked singles, hidden singles, naked or hidden pairs, triples, quadruplets, X-wing, Swordfish, XY-wing, and other. We have covered that in this other article: Excel Sudoku Solver.
Ultimately, when logic cannot help solving the
puzzle any longer, we may need to make some assumptions or guessing a number’s
position. This is something computers can do well and fast. It is often known
as brute force and may come along with certain algorithms such as backtracking.
That has also been discussed in the previous article.
All about solving and also generating Sudoku
puzzles with a computer, and more specifically, with Excel VBA, is explained in
detail in this book: Sudoku Excel Macros. The book explains the different VBA
functions and objects used to create macros to generate and solve Sudoku in
Excel. Besides generating and solving puzzles, the book also discusses how to
determine the difficulty of Sudoku puzzles.
Adding Potential Numbers
Going back to the simple logic algorithm, the solving process consists of two clearly defined steps, and therefore, there are two separate macros; but the second macro is called from within the first one. The first macro adds the potential numbers and has two loops: a first loop through numbers and a second loop through blank cells (puzzle gaps). The code example below shows the first loop.
TempRng = SudoRng.Value
numCount = WorksheetFunction.CountIf(SudoRng, num)
If numCount < 9 Then
End If
Next num
The second loop moves through each blank cell (puzzle gap) and checks whether the number complies with Sudoku rules in that cell. When compliant, the number is added as a potential candidate for that position in another sheet (e.g. Temp).
For Each cell In SudoRng.SpecialCells(xlCellTypeBlanks)
CellRow = cell.Row
CellCol = cell.Column
'Check Sudoku conditions to add temporary numbers
If WorksheetFunction.CountIf(Sudo.Range(boxRng(CellRow, CellCol)), num) = 0 Then
If WorksheetFunction.CountIf(Sudo.Rows(CellRow), num) = 0 And _
WorksheetFunction.CountIf(Sudo.Columns(CellCol), num) = 0 Then
Temp.Cells(CellRow, CellCol).Value = num
End If
End If
Next cell
'Reduce and solve numbers
Call SolveNumbers(num)

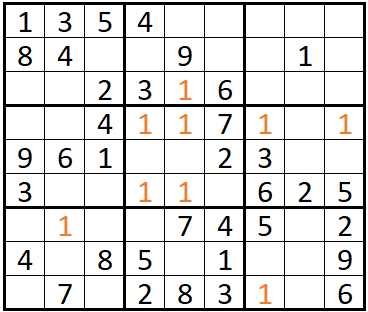

Let’s see an example to understand how it works. After
running the first macro for number 1 only, we get the result below. It shows
the puzzle configuration in sheet Temp with all the positions where number 1
could potentially be placed (highlighted in red/orange color).
Solve Candidate Numbers
After filling all the potential positions for a
given number (number 1 in the example above), a second macro (SolveNumbers)
checks which numbers are unique within a row, column, or block. This macro is
called from within the first one and for each number.
In order to make the process more efficient, it
loops by block and only for blocks that are missing that number in the main
puzzle. In the example above, it skips the first or third blocks for instance;
it just loops through blocks with added numbers (highlighted in red/orange in
the picture above). See part of the code for the second macro below.
With Temp
For GridRow = 2 To 10 Step 3
For GridCol = 2 To 10 Step 3
'check if number is not yet solved
If WorksheetFunction.CountIf(Sudo.Range(boxRng(GridRow, GridCol)), num) = 0 Then
'check if number exists in that block
If WorksheetFunction.CountIf(.Range(boxRng(GridRow, GridCol)), num) > 0 Then
'loop through each cell in that block and find number
For Each cell In .Range(boxRng(GridRow, GridCol)).SpecialCells(xlConstants)
CellRow = cell.Row
CellCol = cell.Column
If .Cells(CellRow, CellCol).Value = num Then
If WorksheetFunction.CountIf(.Rows(CellRow), num) = 1 Or _
WorksheetFunction.CountIf(.Columns(CellCol), num) = 1 Or _
WorksheetFunction.CountIf(.Range(boxRng(GridRow, GridCol)), num) = 1 Then
Sudo.Cells(CellRow, CellCol).Value = num
.Range(boxRng(GridRow, GridCol)).Replace num, vbNullString
.Cells(CellRow, CellCol).Value = num
Exit For
End If
End If
Next cell
End If
End If
Next GridCol
Next GridRow
End With
The macro loops inside each block in sheet Temp and
checks for a unique placement using the worksheet function CountIf. When found,
it adds that number to the puzzle and removes the other numbers
(if any) in the temporary range in sheet Temp.
Applying this algorithm for number 1 in the
puzzle example above returns the following outcome (see below). There are four
unique positions for number 1.
Repeating the Process
The process continues with the next number. See below how the temporary grid looks like for number 2. Note that the macro adds the 2s to the temporary range that already includes the 1s solved in the previous step.
Now there are four positions where number 2 is
unique and can therefore be solved and added to the puzzle before continuing
with the next number.
The process continues for all numbers (up to number 9) and then checks whether any changes/additions were made to the initial configuration. That’s done calculating the sum of all numbers before and after the main For loop. If the sum is different, it means some numbers were solved, and then it loops again and repeats the whole process. If the sum is 405 the Sudoku has been solved. However, if the puzzle is not solved and the sum of all numbers has not changed, the program cannot find any position to place the next number and gets stuck. This happens with puzzles of higher difficulty, or when a Sudoku is unsolvable or not “correct” (wrongly designed). For puzzles of higher difficulty, other techniques are needed to solve them – see this other article Excel Sudoku Solver or get the book Sudoku Excel Macros.
Download Excel Simple Sudoku Solver
